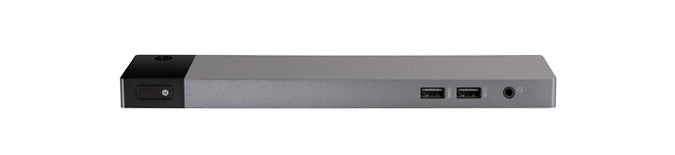

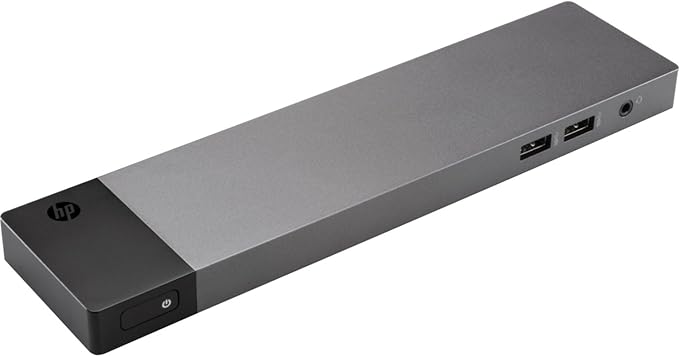

HP ZBook G3 Thunderbolt 3 Workstation Dock

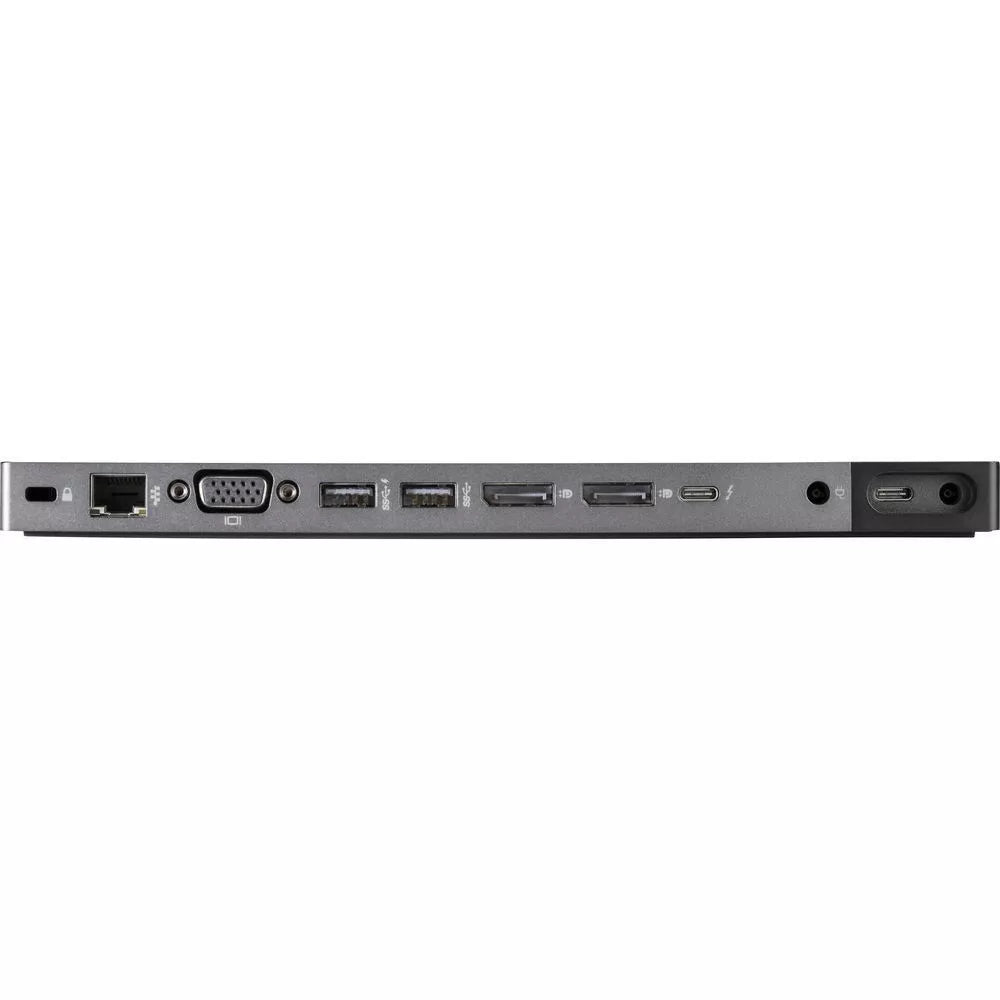

Ports Configuration

• 1 × Thunderbolt 3 upstream port (host connection)
• 2 × DisplayPort 1.2 for external monitors
• 1 × VGA output
• 4 × USB-A 3.0 ports (including 1 powered port)
• 1 × RJ-45 Gigabit Ethernet
• 1 × 3.5 mm combo audio jack (microphone/headphone)

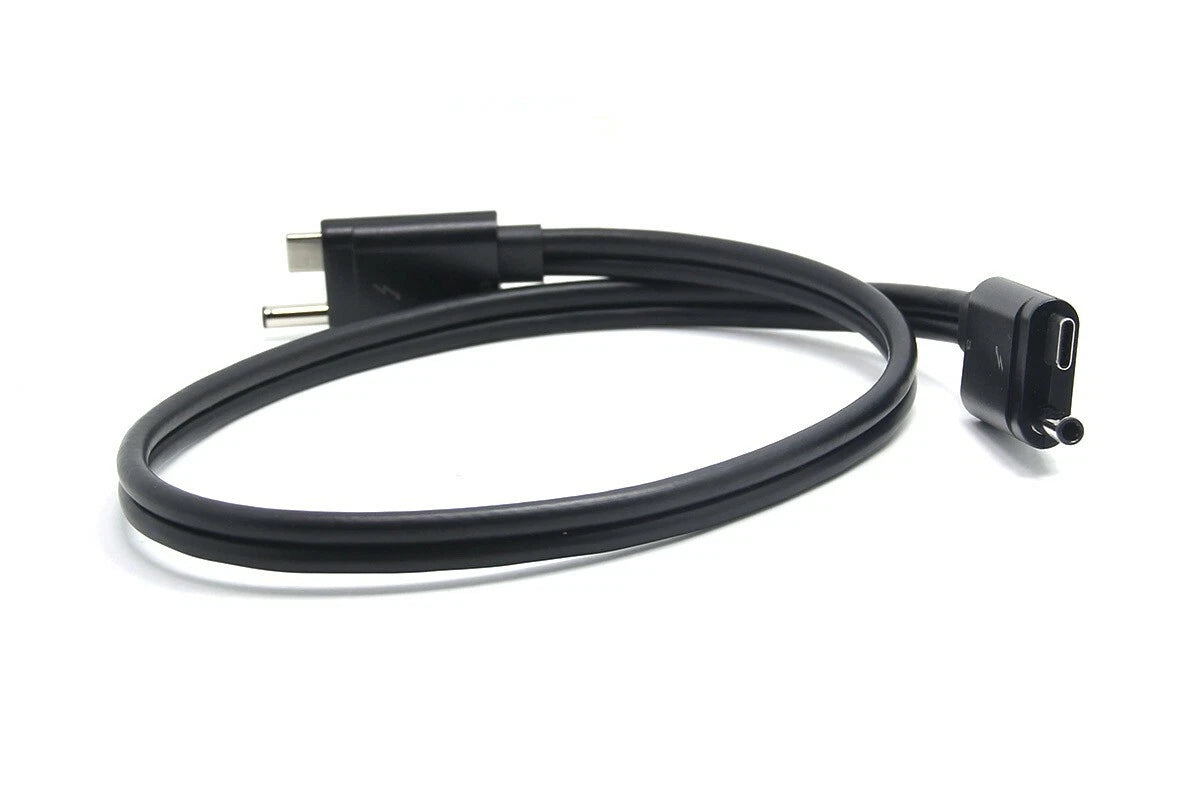

• 1 × Thunderbolt/Power combo cable connector

Power Delivery

• Provides up to 150W power to HP ZBook laptops via Thunderbolt cable
• Supports high-performance HP mobile workstations

Display Support

• Supports up to three external monitors
• Dual UHD/4K displays supported via DisplayPorts
• VGA port for legacy display connectivity

Data & Speed

• Thunderbolt 3 port: up to 40 Gbps
• USB-A 3.0 ports: up to 5 Gbps

Design & Security

• Compact and durable build
• Integrated lock slot for physical security

Weight

• Approximately 227g
