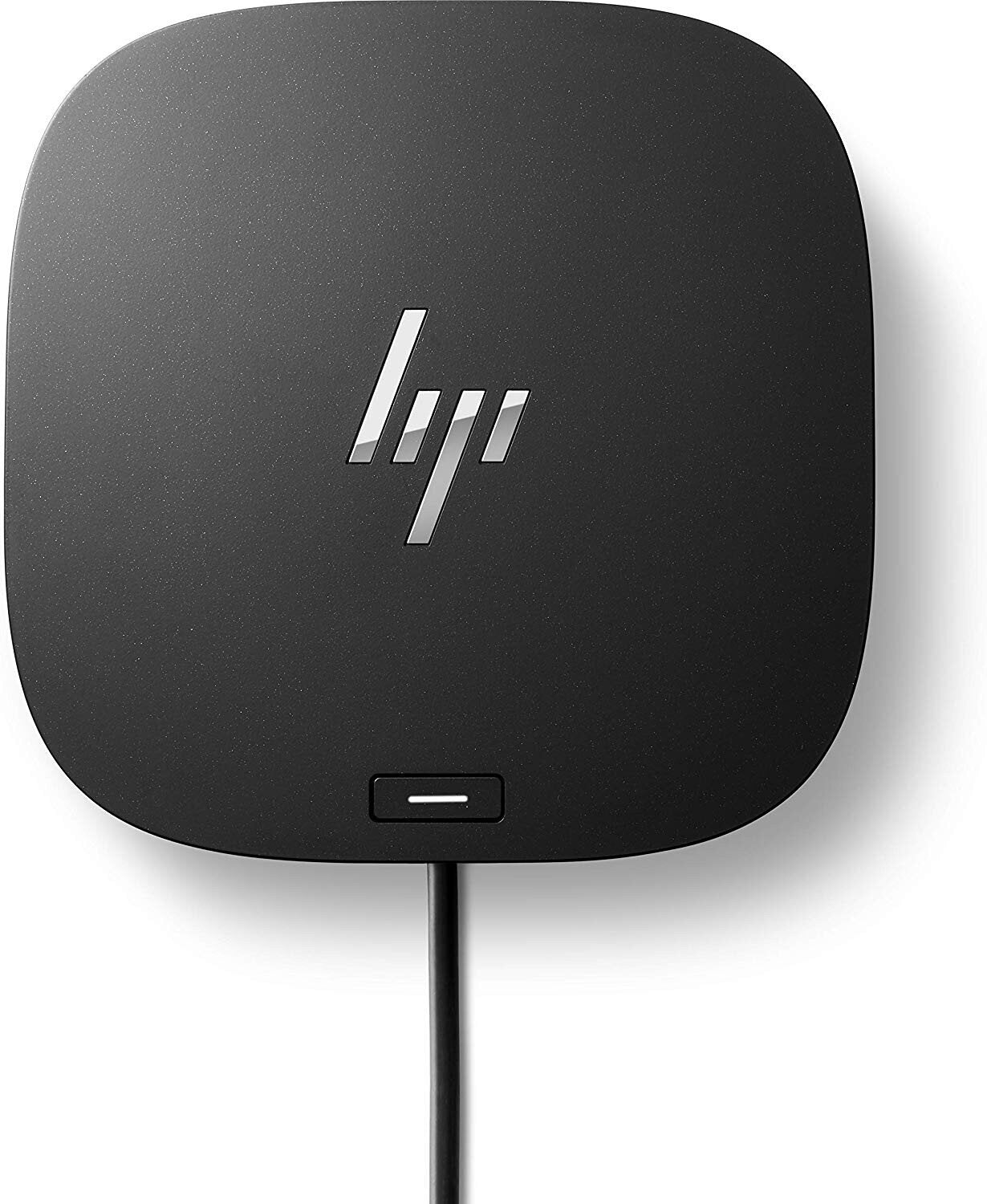

HP USB-C G5 4k Display Docking Station

Power Delivery

• Up to 100 W charging delivered to HP laptops

• Up to 75 W for non‑HP laptops via USB‑C PD (5 V, 9 V, 10 V, 12 V, 15 V, 20 V up to 5 A)

• Front USB-C port provides 15 W power output for peripheral charging

Display Support

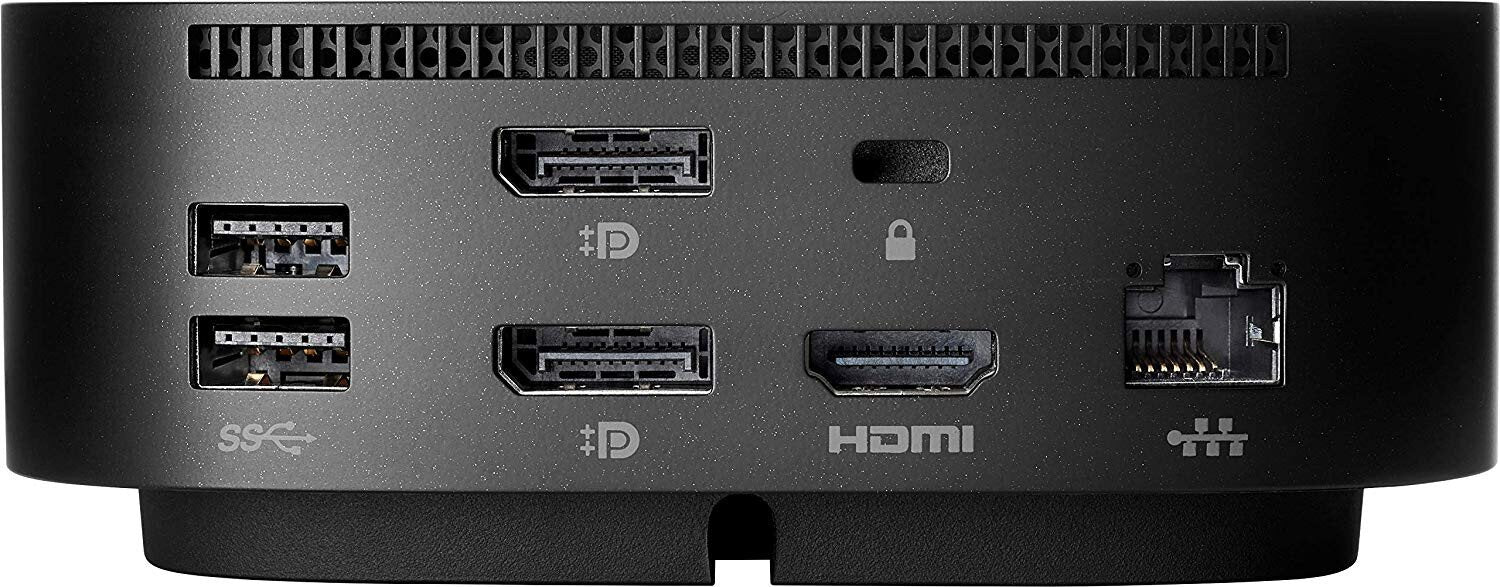

• 2 × DisplayPort 1.4 ports + 1 × HDMI 2.0 port (supports up to 3× 4K displays via notebook + dock)

USB Ports & Connectivity

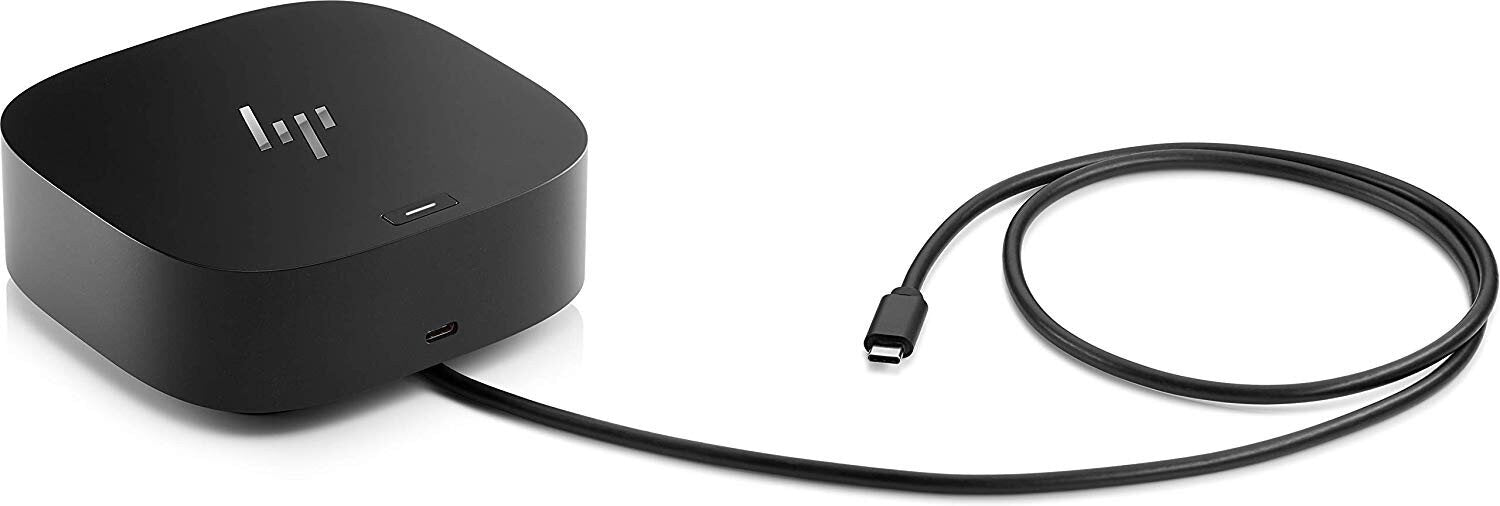

• 1 front USB-C (data + 15 W power)

• 4 × USB 3.0/3.2 Gen 1 Type-A charging ports (2 side, 2 back)

• 1 × RJ‑45 Gigabit Ethernet port

• 1 × combo audio jack (headphone/microphone)

Security & Management

• Kensington-style lock slot for theft protection

• Supports PXE boot, Wake-on-LAN, MAC address pass-through, LAN/WLAN switching, and eTag asset tracking for IT management

Compatibility

• Works with HP and other USB‑C/Thunderbolt-enabled laptops (Windows 10/11, macOS, Chrome OS)

• Requires host USB-C port that supports DisplayPort Alt Mode and Power Delivery
