HP Thunderbolt 4 (280W) G4 Dock

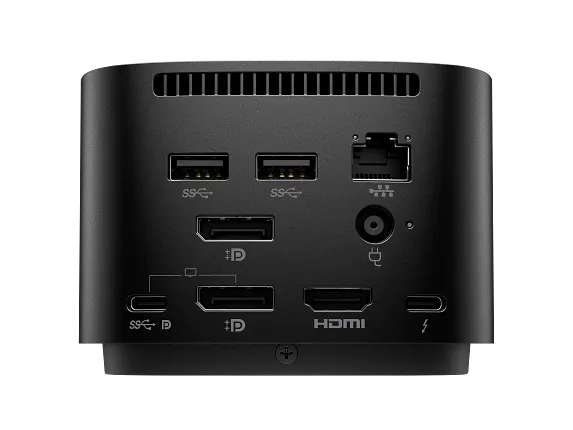

Ports Configuration

• 1 × Thunderbolt 4 (host port – USB-C)
• 1 × USB-C 3.2 Gen 2 (data + power – front)
• 1 × USB-C 3.2 Gen 2 (DP Alt Mode – rear)
• 2 × DisplayPort 1.4 ports
• 1 × HDMI 2.0 port
• 4 × USB-A 3.2 Gen 1 ports
• 1 × RJ-45 Ethernet port (supports 1 Gbps & 2.5 Gbps)
• Kensington lock slot
• Power/Wake button (fully functional with HP laptops)

Power Delivery

• Up to 100 W via Thunderbolt 4 host cable
• Up to 230 W via combo barrel + USB-C
• Includes 280 W power adapter

Display Support

• Supports up to four external displays
• Up to 4K @ 60 Hz ×4 with Display Stream Compression (DSC)
• Multiple configurations supported depending on host laptop

Data & Speed

• Thunderbolt 4: up to 40 Gbps
• USB-C 3.2 Gen 2: up to 10 Gbps
• USB-A 3.2 Gen 1: up to 5 Gbps

Security & Management

• Wake-on-LAN
• PXE Boot
• MAC Address Pass-through
• Remote Port Disable
• vPro support for enterprise manageability

Design & Build

• Compact cube-shaped design
• Weight: approximately 760 g
• Built-in 0.8 m host cable
• Compatible with Windows, macOS, ChromeOS, and Linux
• Best performance with HP laptops
