Dell WD19TBS Thunderbolt Display Docking Station

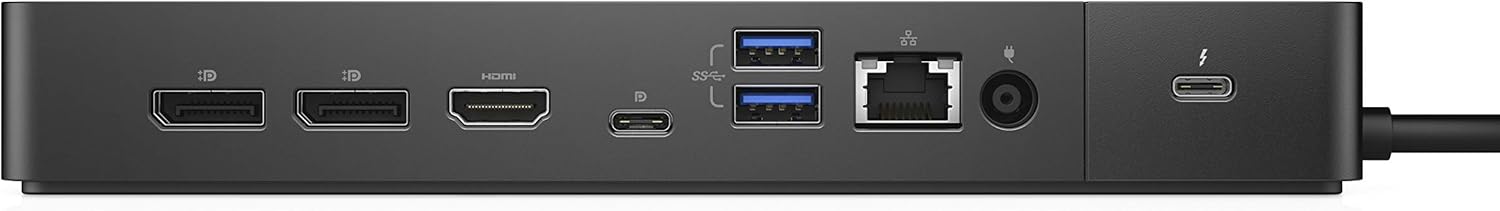

Ports Configuration

• 2 × DisplayPort 1.4

• 1 × HDMI 2.0b

• 1 × USB-C (Multi-function with DisplayPort Alt Mode)

• 1 × Thunderbolt 3 upstream (Host)

• 2 × USB-C 3.2 Gen 2 (10 Gbps)

• 3 × USB-A 3.2 Gen 1 (5 Gbps, including one PowerShare)

• 1 × RJ-45 Gigabit Ethernet

• Note: No 3.5mm audio ports (headset or line-out)

Other Key Features

Power Delivery:

• Up to 130W power to Dell laptops (with 180W adapter)

• Up to 90W power to non-Dell laptops via USB-C

Display Support:

• Supports up to:

  • 1 x 5K @ 60Hz

  • 2 x 4K @ 60Hz

  • Or 3–4 x QHD/FHD displays depending on system

Data Speed:

• Thunderbolt 3: Up to 40 Gbps

• USB-C Gen 2 ports: Up to 10 Gbps

Security & Management:

• Kensington Lock Slot + Noble Wedge Slot

• Supports Wake-on-LAN, MAC address pass-through, PXE boot

• Remote port disable via Dell Client tools

Design & Compatibility:

• Built-in 0.8m Thunderbolt 3 cable

• VESA mount compatible

• Power button works with supported Dell laptops

• Compatible with Dell laptops and Thunderbolt 3 enabled systems
