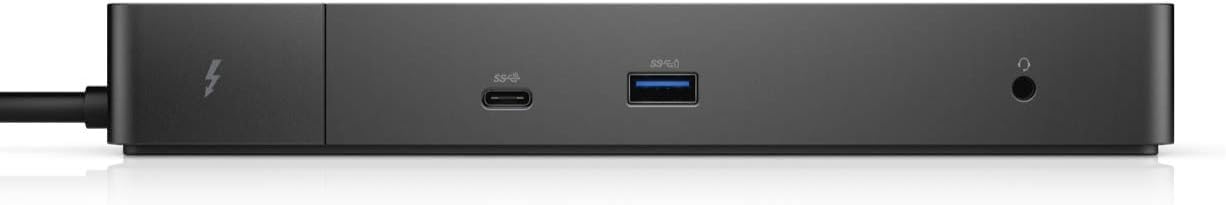

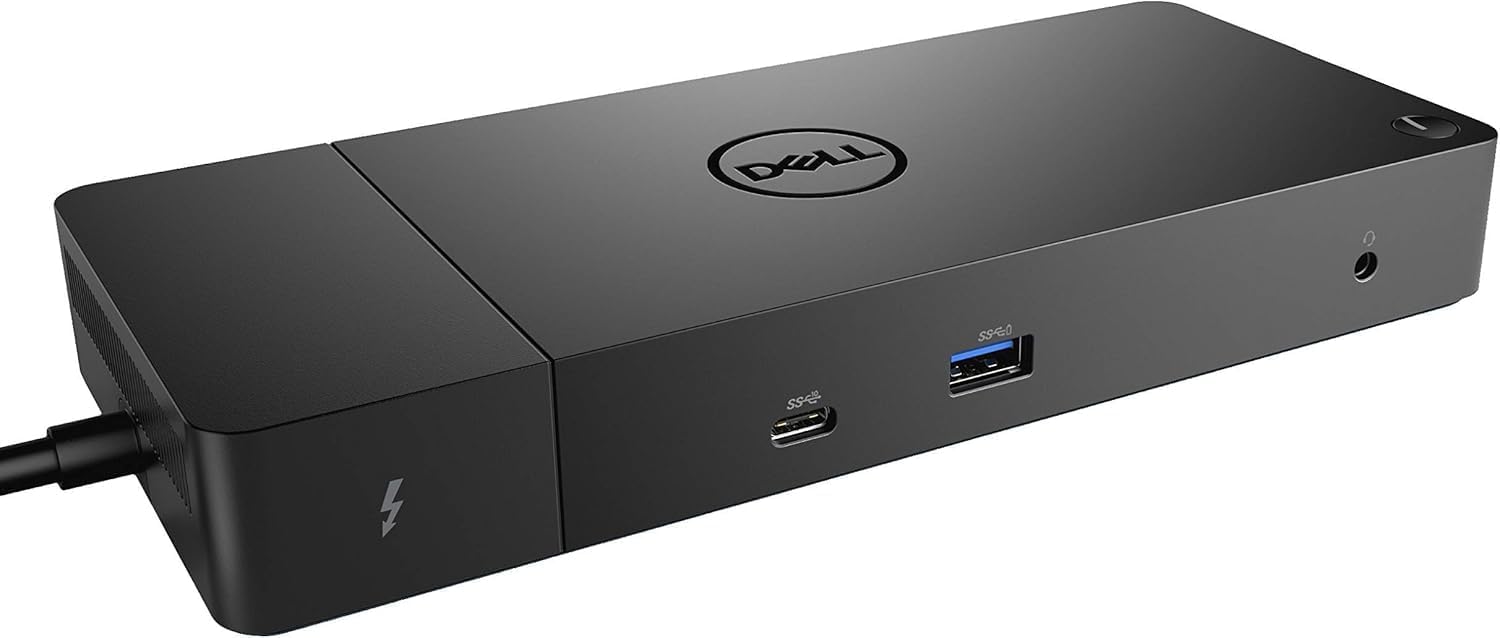

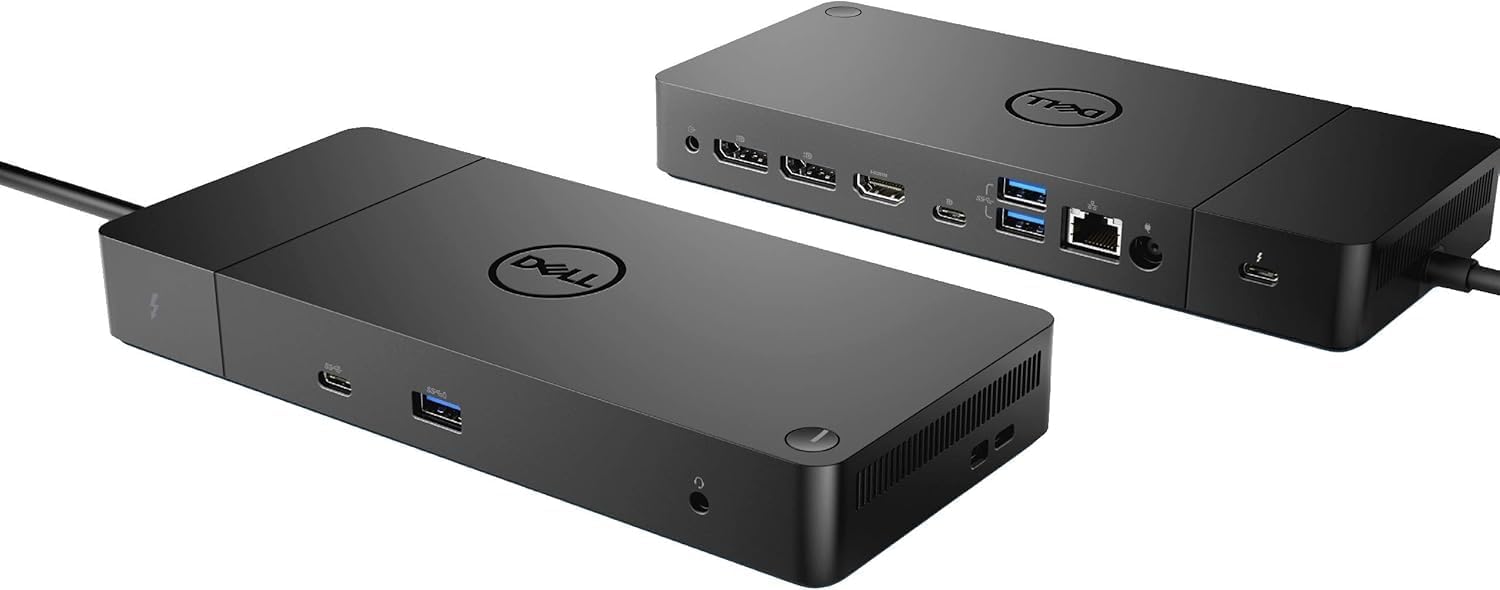

Dell WD19TB Thunderbolt 3 Docking Station

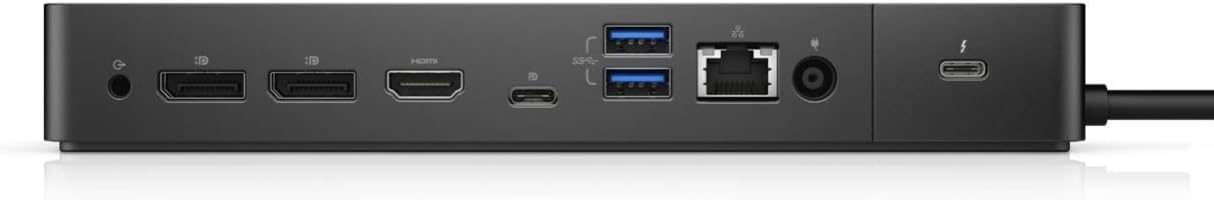

Ports Configuration

• 2 × DisplayPort 1.4
• 1 × HDMI 2.0b
• 1 × Multi-function USB-C (DisplayPort Alt Mode)
• 1 × Thunderbolt 3 upstream (USB-C connector)
• 3 × USB-A 3.1 Gen 1 (SuperSpeed USB)
• 2 × USB-C 3.1/3.2 Gen 2
• 1 × RJ-45 Gigabit Ethernet port
• 1 × 3.5 mm line-out audio jack
• 1 × 3.5 mm headset combo jack

Power Delivery

• Up to 130 W to Dell systems (with 180 W adapter)
• Up to 90 W to non-Dell systems via USB-C

Display Support

• Supports up to three displays on compatible Thunderbolt host:
• 1 × 5K @ 60 Hz
• 2 × 4K @ 60 Hz
• 3 × QHD/FHD depending on system capabilities
• On non-Thunderbolt hosts:
• 1 × 4K @ 30 Hz
• 1 × QHD @ 60 Hz
• 2 × FHD @ 60 Hz

Data & Speed

• Thunderbolt 3 bandwidth up to 40 Gbps
• USB-C Gen 2 ports support data speeds up to 10 Gbps

Security & Management

• Noble Wedge and Kensington lock slots
• Supports Wake-on-LAN, MAC-address pass-through, PXE Boot
• Remote port disable via Dell firmware management tools

Design & Other Features

• Built-in 0.8 m Thunderbolt 3 cable
• VESA-mountable design
• Power button compatible with Dell laptops
