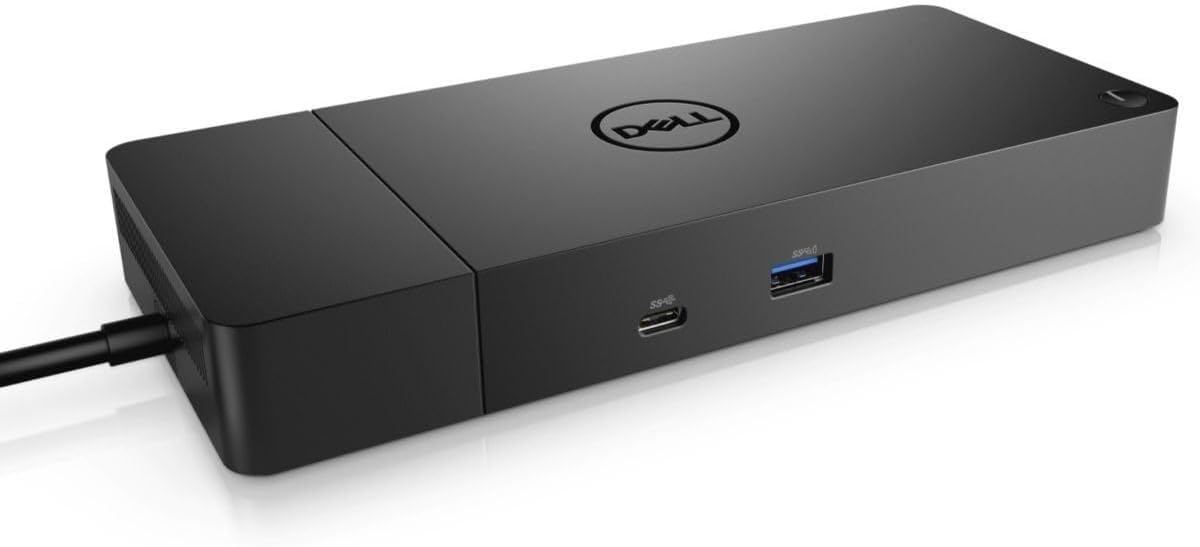

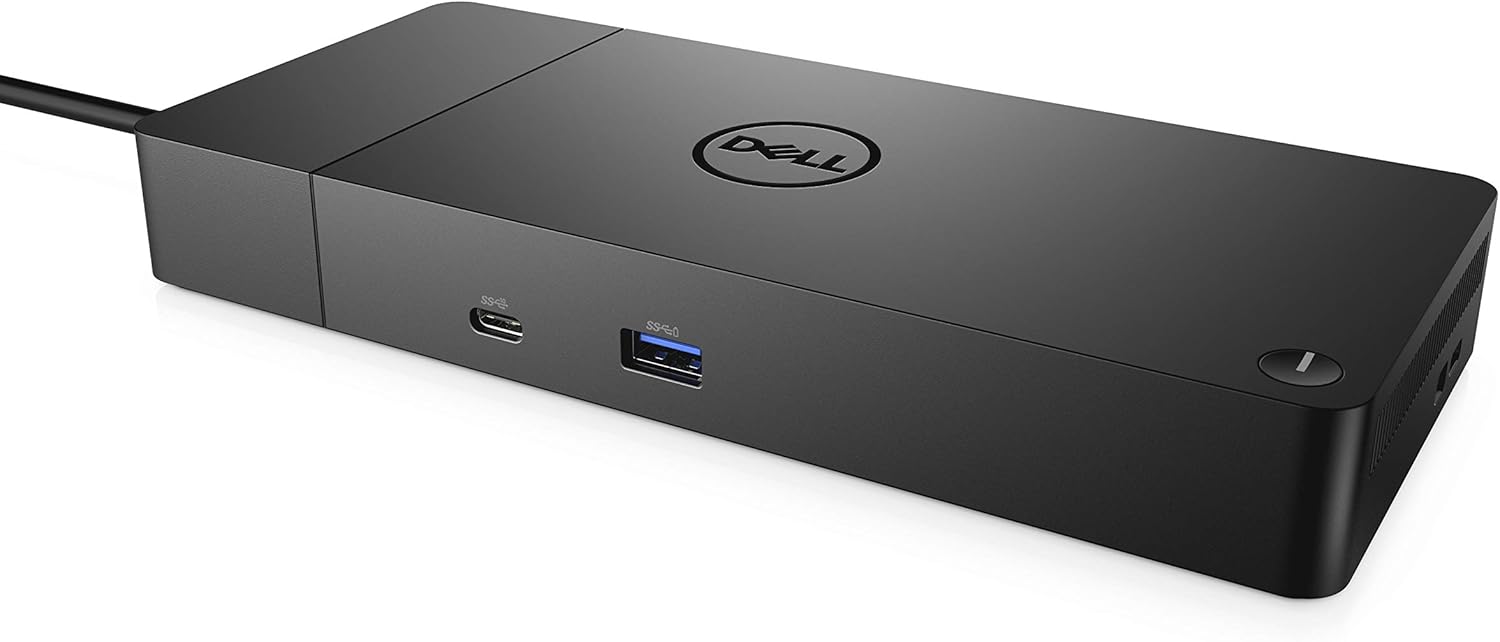

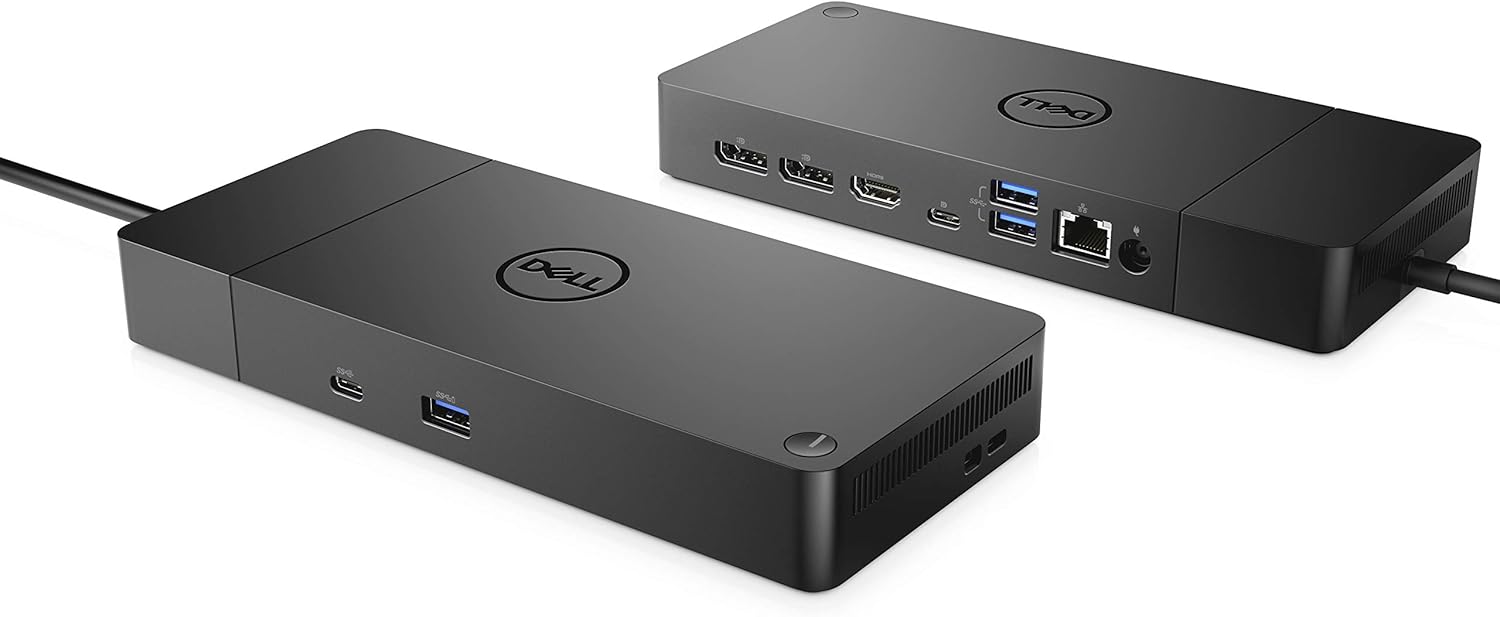

Dell WD19S 4K Display Docking Station

Ports Configuration

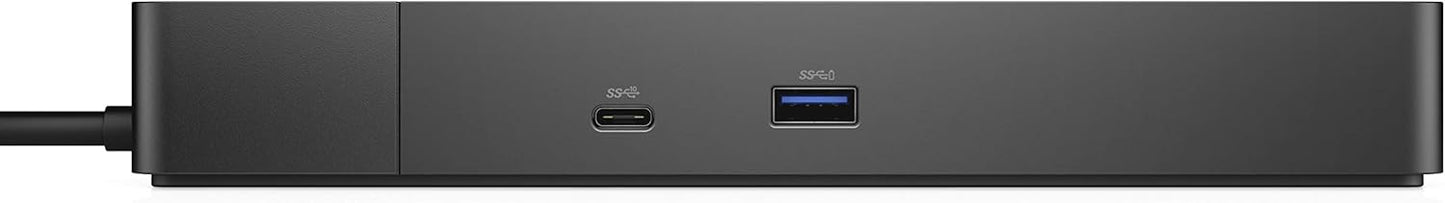

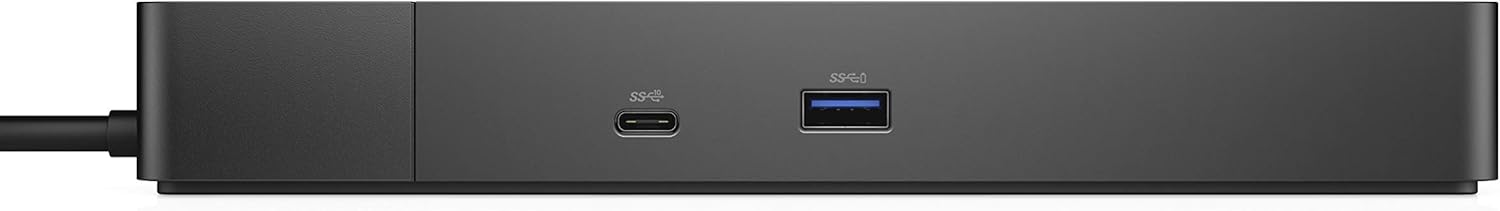

Front Side

• 1 × USB-C 3.2 Gen 2 (Data & Video)
• 1 × USB-A 3.2 Gen 1 (PowerShare)
• 1 × 3.5 mm Headset Combo Jack

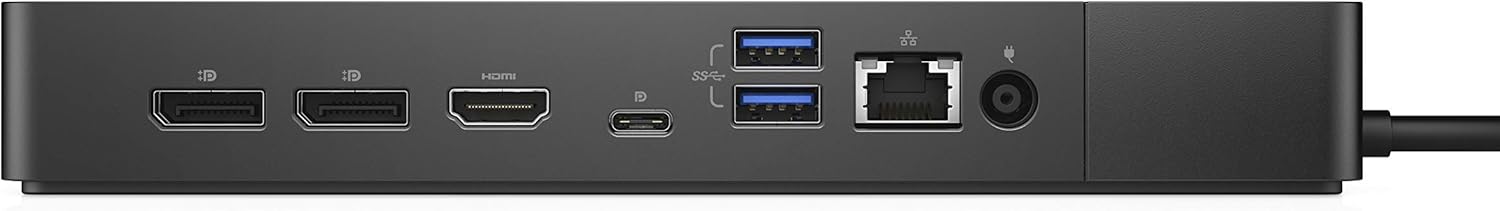

Rear Side

• 2 × DisplayPort 1.4
• 1 × HDMI 2.0
• 1 × USB-C Multi-function DisplayPort
• 2 × USB-A 3.2 Gen 1
• 1 × RJ-45 Gigabit Ethernet port
• 1 × 3.5 mm Audio Line-out

Power Delivery

• Up to 130 W to Dell laptops (via 180 W adapter)
• Up to 90 W to non-Dell laptops

Display Support

• Supports up to dual 4K @ 60 Hz or triple displays (resolution varies by system)

Compatibility

• Works with USB-C DisplayPort Alt Mode laptops (Dell & non-Dell)

Additional Features

• Includes fixed 1-meter USB-C cable
• Power button works with supported Dell laptops
