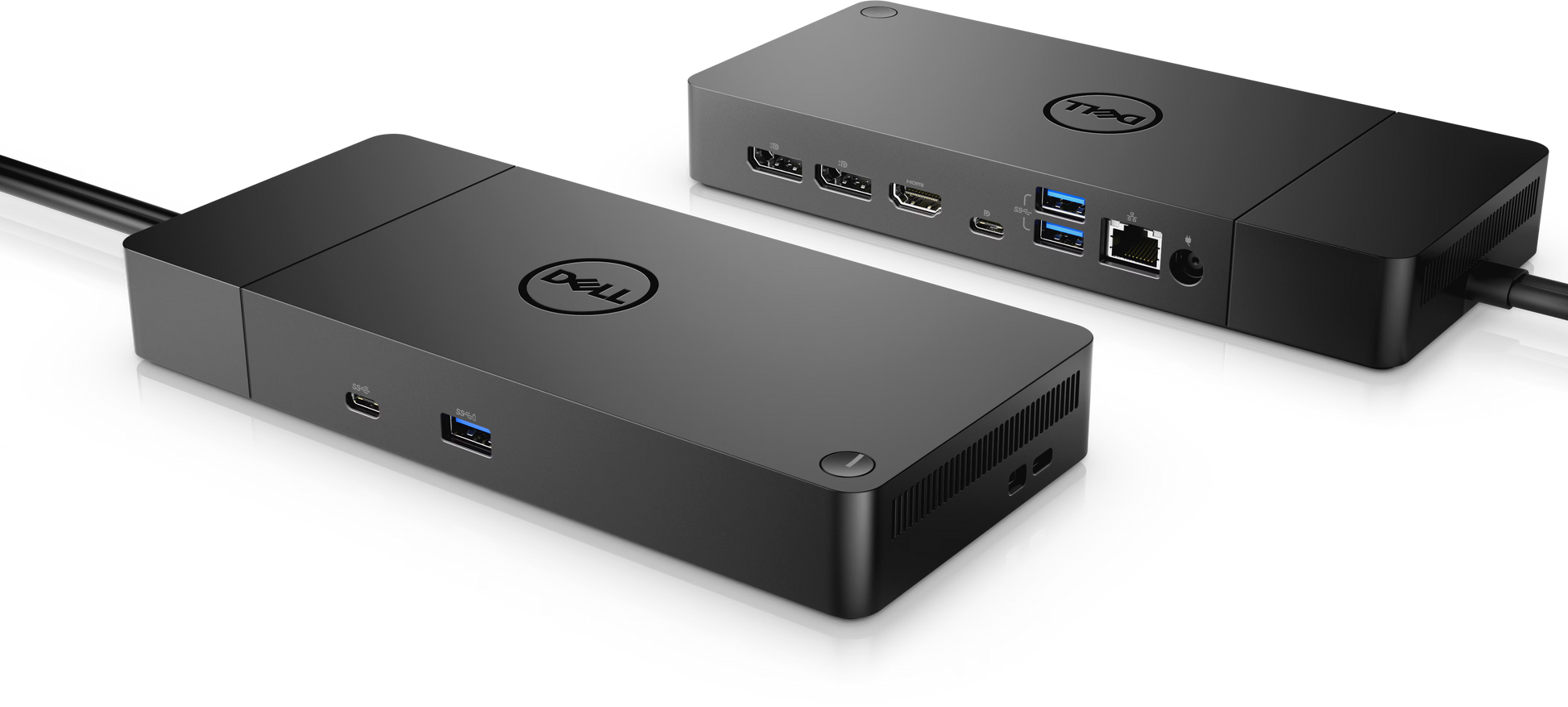

Dell WD19DC (210W) Dual USB-C Trio 4K Display Dock

Ports Configuration

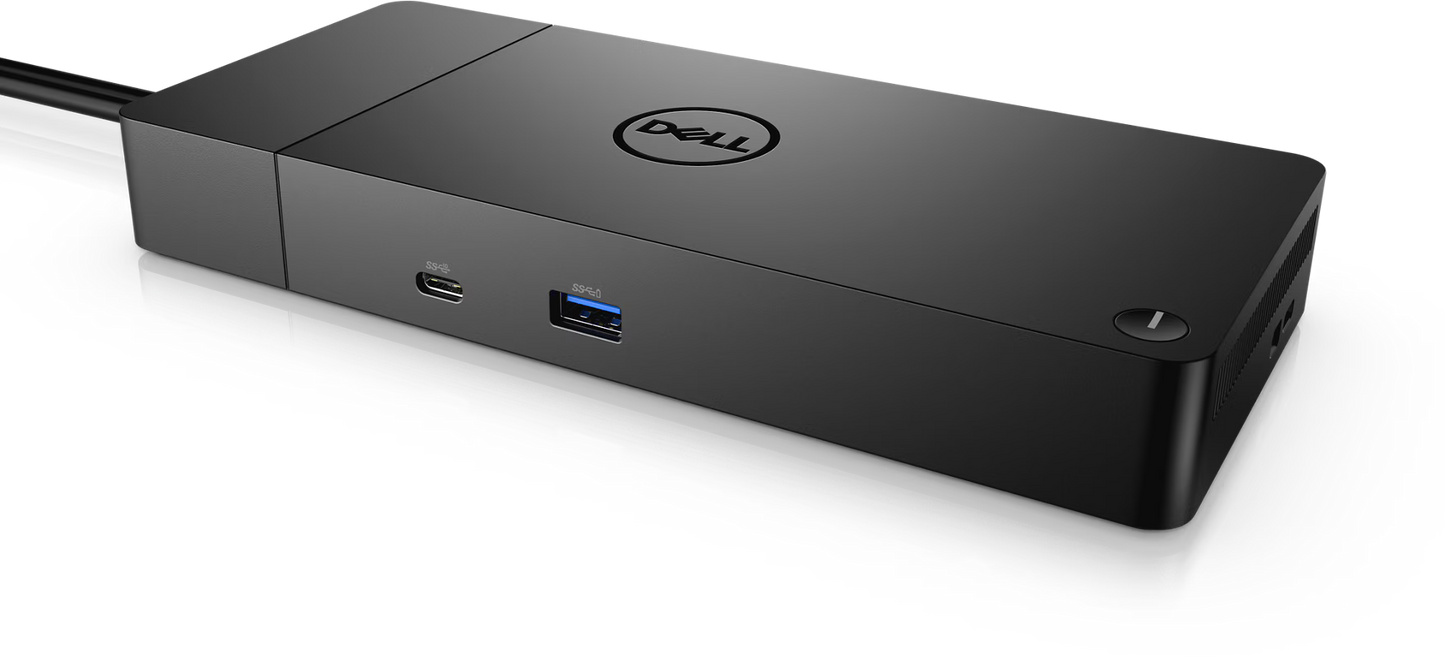

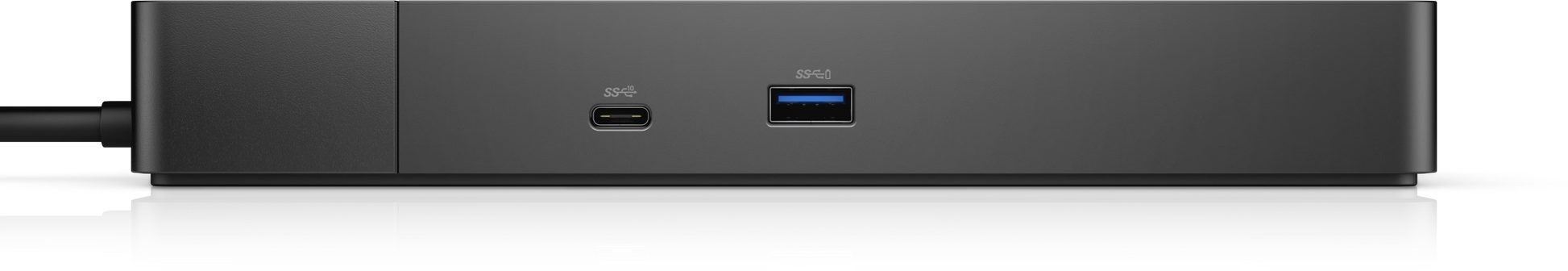

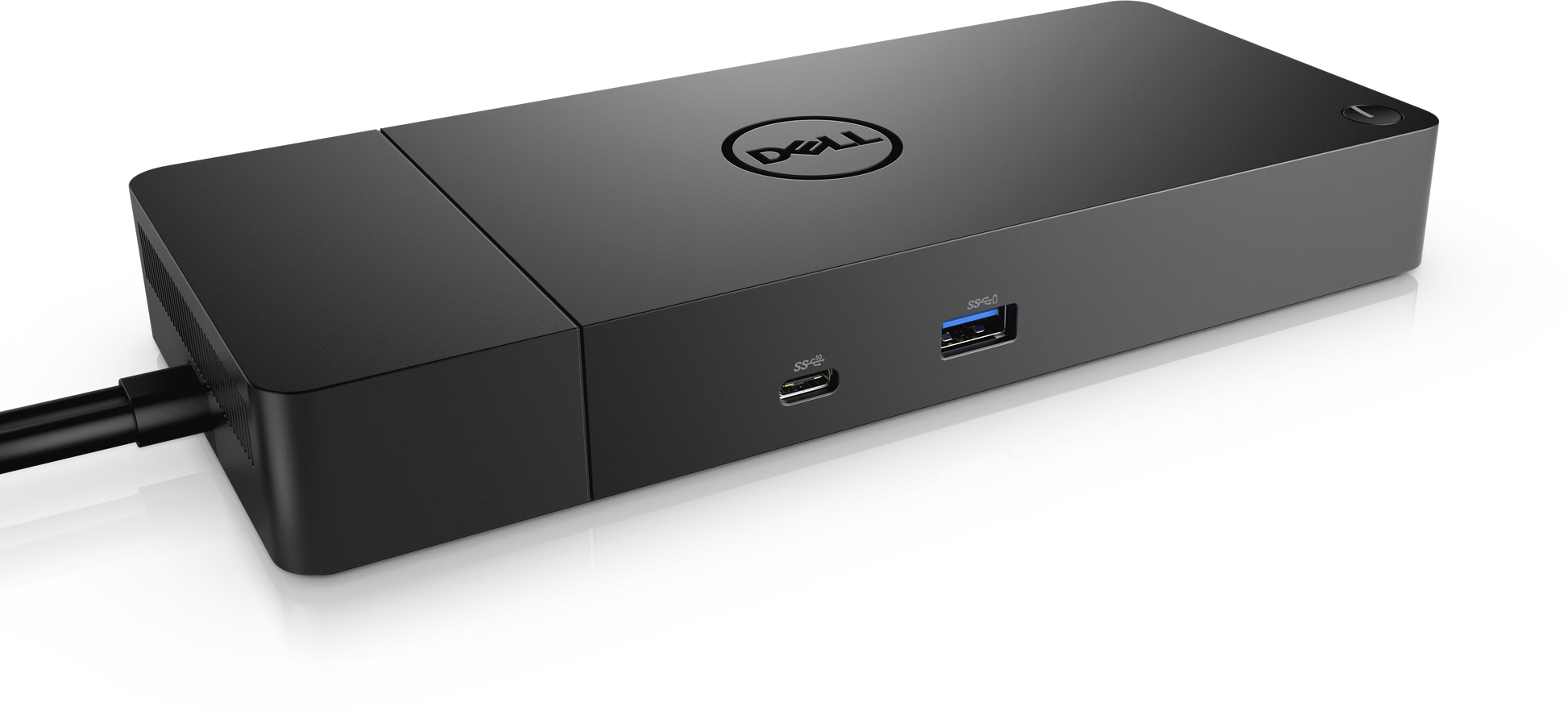

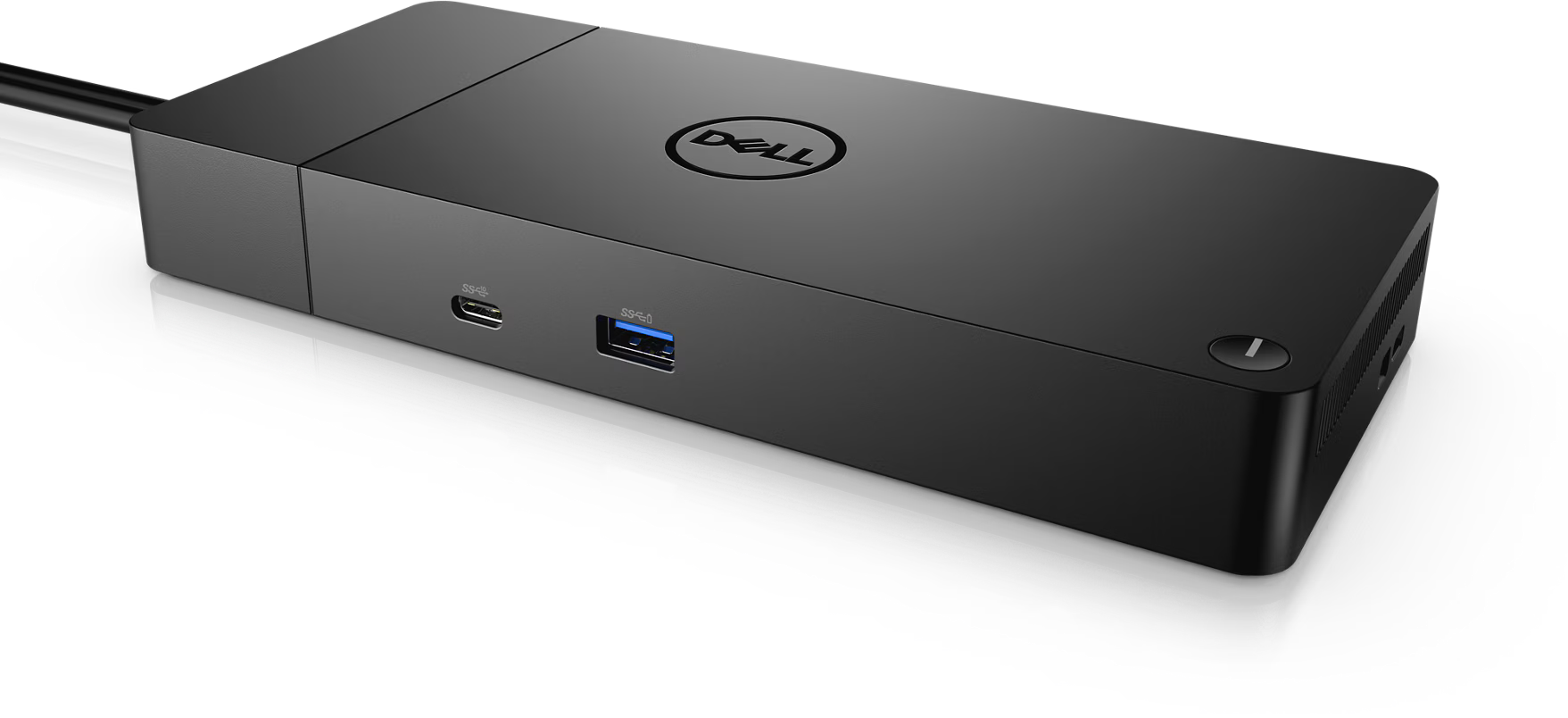

Front Side:

• 1 x USB-C 3.2 Gen 2 (Data & Video)

• 1 x USB-A 3.1 Gen 1 (PowerShare)

• 1 x 3.5mm Headset Combo Jack

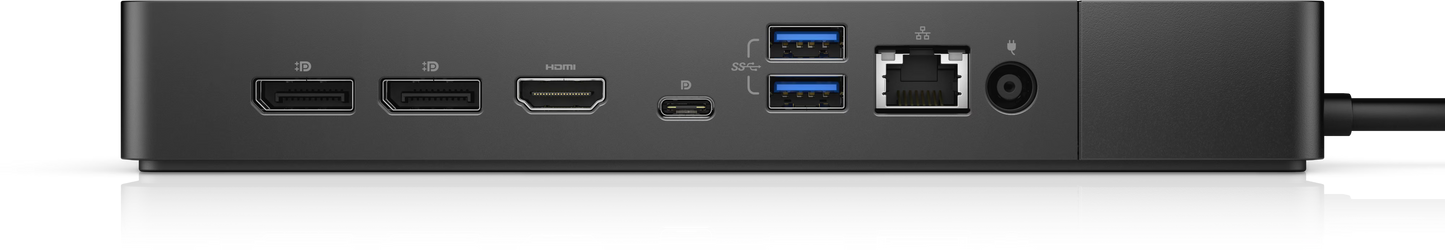

Rear Side:

• 2 x DisplayPort 1.4

• 1 x HDMI 2.0b

• 1 x USB-C (DisplayPort Alt Mode)

• 3 x USB-A 3.1 Gen 1

• 1 x USB-C Gen 2 (for power/video)

• 1 x RJ-45 Gigabit Ethernet

• 1 x 3.5mm Audio Line-out

 Power Delivery

• Up to 210W for Dell Precision laptops (using both USB-C cables)

• Up to 130W for other Dell laptops (single cable)

• Up to 90W for non-Dell systems

Display Support

• Up to 3 x 4K @ 60Hz monitors

• Or up to 1 x 5K @ 60Hz monitor

• Multiple monitor support with MST technology

 Data Transfer

• USB-C Gen 2 ports: up to 10 Gbps

• USB-A 3.1 Gen 1 ports: up to 5 Gbps

Security & Manageability

• Kensington and Noble lock slots

• Wake-on-LAN

• PXE Boot

• MAC address pass-through

Design & Build

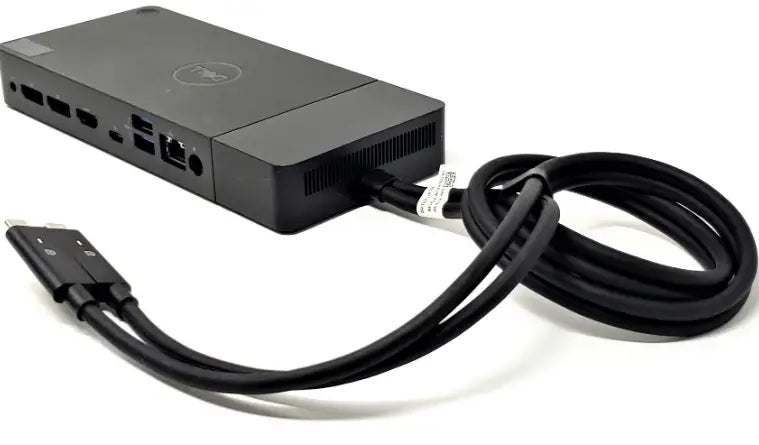

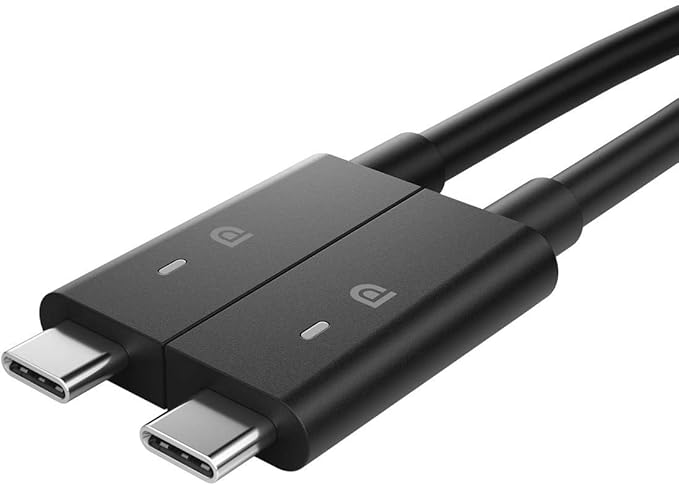

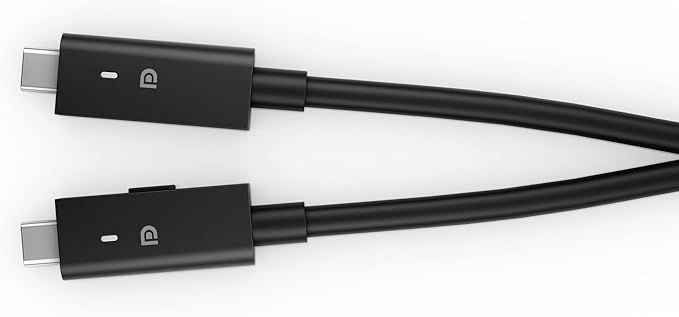

• Dual USB-C Cables (0.8m each)

• Power button integration for supported Dell laptops

• VESA mount compatible
