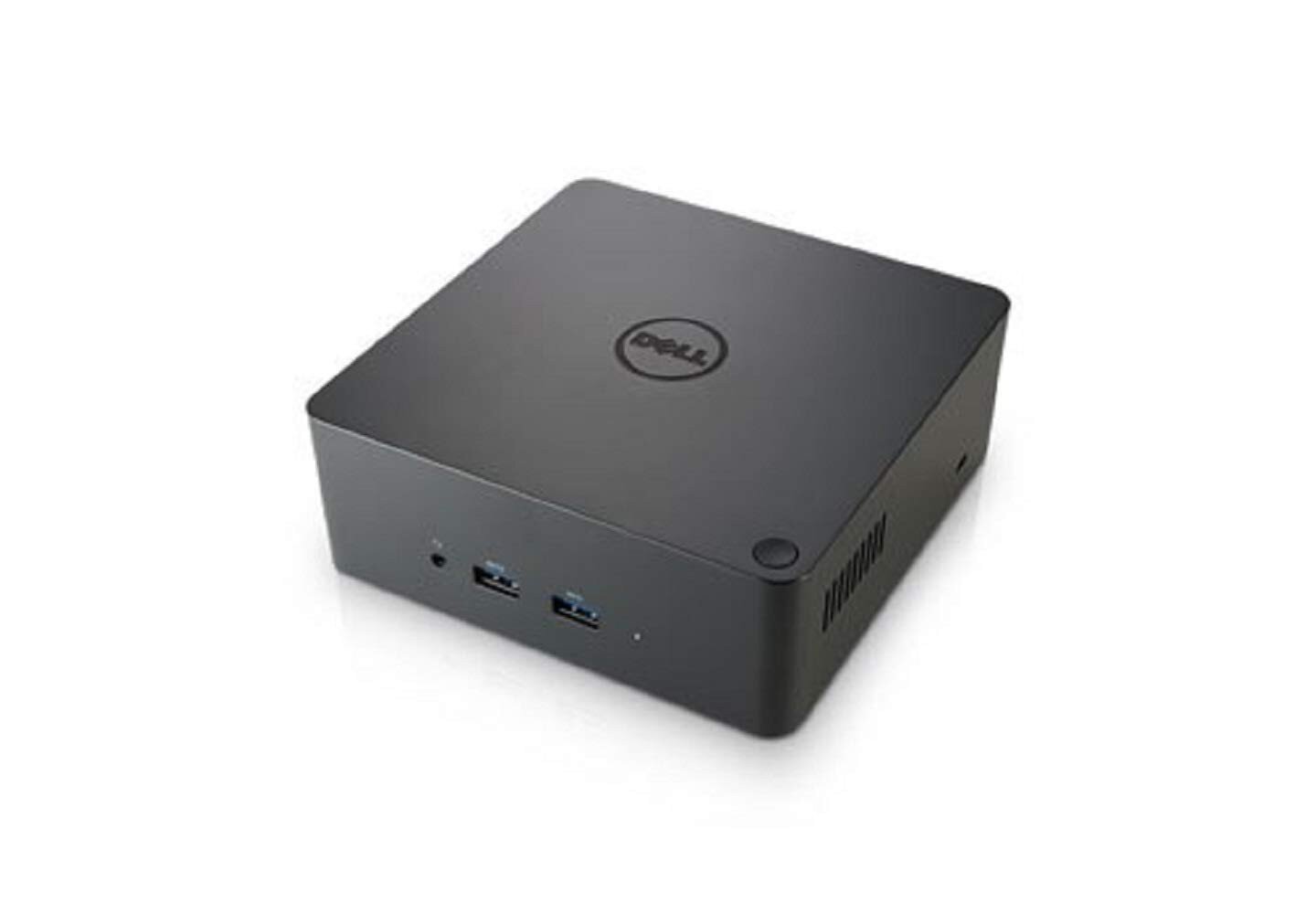

Dell Thunderbolt Business Docking Station - TB16

Connectivity

• Thunderbolt 3 (USB-C) Upstream Port – Single cable connection for data, power, and video

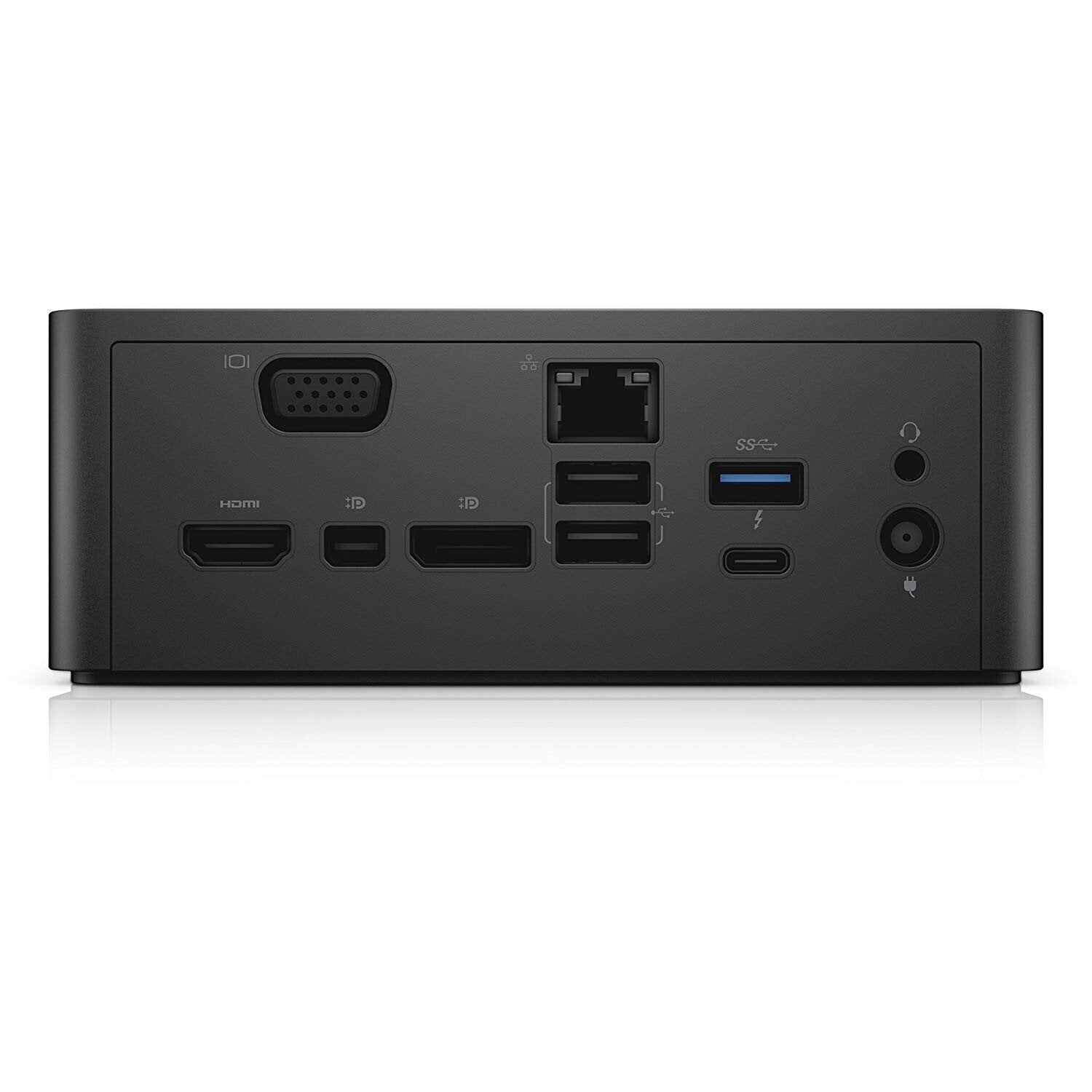

USB Ports

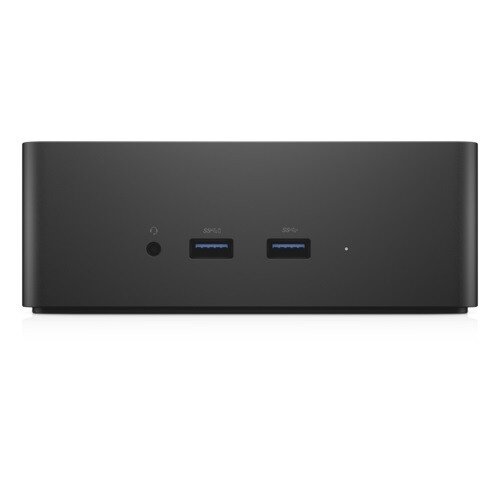

• 3 × USB 3.0 ports (1 front with PowerShare, 2 rear)
• 2 × USB 2.0 ports (rear)

Display Outputs

• 1 × HDMI
• 1 × Mini DisplayPort
• 1 × DisplayPort
• 1 × VGA
• 1 × Thunderbolt 3 (supports video output)

Audio Ports

• 1 × Headset combo jack (front)
• 1 × Audio out port (rear)

Ethernet

• 1 × Gigabit Ethernet RJ-45 port

Power Delivery

• Supports up to 130 W power delivery to Dell laptops via Thunderbolt 3
• Includes 180 W power adapter

Video Output Support

• Supports up to three 4K displays at 60 Hz
• Supports a single 5K display at 60 Hz

Compatibility

• Optimized for Dell Latitude, XPS, and Precision laptops
• Compatible with other Thunderbolt 3-enabled systems (some features may be limited outside Dell ecosystem)

Design & Build

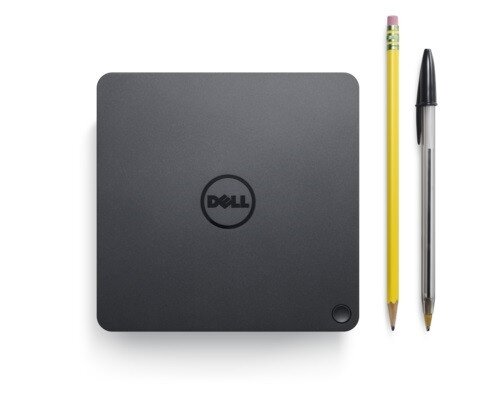

• Compact and durable design
• Active cooling fan for stable performance

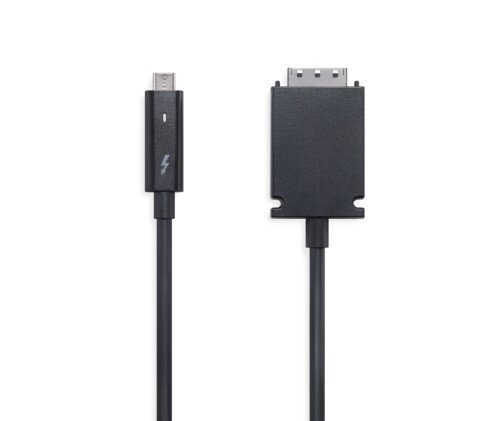

• Built-in Thunderbolt 3 cable (0.5 m length)
